Industrial White Sugar Cube Manufacturing Machine For Sale

  • Finished product:Cube sugar
  • Capacity:100 kg per hour
  • Power:20 kw
  • Brand:LONGER Machinery
  • Payment Method:T/T, L/C, Western Union, Money Gram
  • Description:This cube sugar machine is used to make different size cube sugar, common size are 16*16*13 mm and 18*18*15 mm, also can be customized.

Features

Sugar cube is a good coffee mate, the sugar cube manufacturing machine made in our company is fully automatic, which can complete forming, cutting, packaging. The raw material can be white sugar, brown sugar and others, the size of lump sugar is adjustable.
 Sugar Cube Manufacturing Equipment Manufacturer
Sugar Cube Production Process:
The sugar cube is produced by mixing refined sugar with a crystal size and a small amount of sugar solution (or clean water), forming a wet sugar with a water content of 1.5 to 2.5%, then, it is formed into a square shape by a molding machine, and then dried to a moisture content of 0.5% or less by a dryer, finally packaged after cooling.

Sugar Cube Making Machine Video:

Sugar Cube Manufacturing Machine Features:
1. The speed of the turntable, the filling depth of the material, and the thickness of the compact can be adjusted during pressing.
2. The mechanical buffer on the machine can avoid damage to the machine caused by overload. The side of the sugar cube making machine is equipped with a suction box, which can absorb the dust generated during the operation of the machine to avoid sticking.
3. The large-screen touch screen displays the process flow chart, the working status of each part, the setting and display of parameters such as temperature and speed, and the operation is more convenient.
4. Conveyor chain, cooling system, double demolding mechanism to ensure demoulding.
5. Different shapes of sugar cubes can be produced according to different molds.
 White Sugar Cube
The sugar cube manufacturing machine has a variety of different series for sale, to meet the production needs of different customers. Our company has the latest domestically developed advanced models and has a high market share. At the same time, the industrial sugar cube machine has exported to Russia, Africa, North America and other regions, and won the praise of customers. In addition, we can also provide customized services for customers. If the customer's raw materials are special and the processing technology is different from the ordinary sugar processing technology, please let us know your requirements and we will customize the appropriate models according to your requirements.

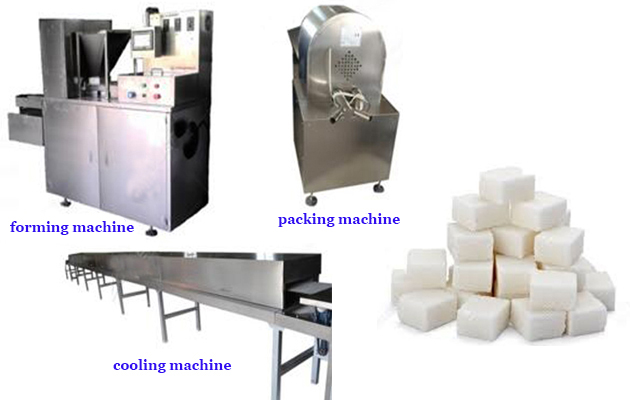

We only showed a part of pictures and videos about the sugar cube manufacturing machine, if you need more, please contact us for free.

Technical Data

Equipment
Specifications
Sugar Grinder Machine
Capacity:50-100kg/h
Grinding fineness:10-120mesh
Motor power:2.2kw
Dimension:780*750*1500mm
Weight:250kg
 Spiral Feeding Machine
Function: mixing,automatic feeding
Motor power: 3.85kw
Dimension: 500*500*1650mm
Weight: 140kg
Sugar Making Machine
Capacity:60-120kg/h
Power:3kw
Dimension:1200*600*1400mm
Weight:800kg
Tablet Linkage Conveyor
Function: Linkage,Transmission
Efficiency: 0-10m3/min
Air pressure: 0.3-0.5Mpa
Dimension: 1300*700*1000mm
Weight: 60kg
Infrared Drying Tunnel
Efficiency: 0-10m3/min
Power: 2KW*4
Dimension: 1900*700*1150mm
Weight: 90kg*4
Cooler Machine
Function: Cooling
Efficiency: 0-10m3/min
Dimension: 1900*700*700mm
Weight: 60kg
Cube Sugar Packing Machine
Feature: infinite speed variation
Power: 2.2kw
Chuck handle: 2 pcs
Dimension: 650*600*950mm
Weight: 75kg
